AutoCAD Block

700×100 Duct Cover & Cap Detail Drawing

.dwgAutoCAD

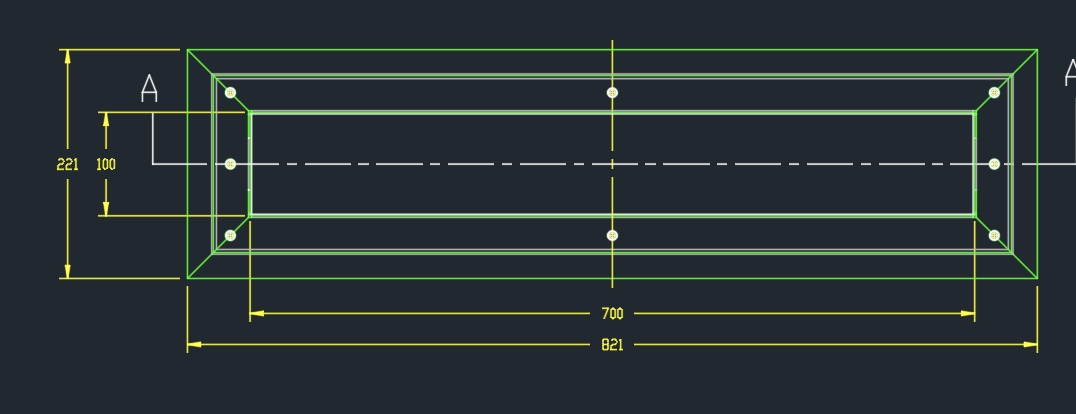

The 700×100 Duct Cover & Cap Detail Drawing is a professionally prepared AutoCAD DWG file created for HVAC, fabrication, and construction projects. This package includes detailed fabrication drawings with sectional views, cover plate dimensions, cap layouts, hole locations, bending details, mounting arrangements, and assembly specifications required for accurate manufacturing and installation. Perfect for: • HVAC Engineers • Sheet Metal Fabricators • Architects • MEP Designers • Construction Professionals • Technical Drafting Ideal for shop drawings, fabrication planning, production documentation, and project detailing. Instant digital download after purchase.

$7.99CAD · digital download

Secure checkout with Stripe. No account required.

Digital filesSecure deliveryView licence
