AutoCAD Block

Ultimate Architectural & Construction Detail Pack

.dwgAutoCAD

Ultimate Architectural & Construction Detail Pack. This professional AutoCAD DWG bundle provides a comprehensive collection of architectural, structural, HVAC, and construction details prepared for real-world design, fabrication, and construction documentation. The package includes wall assemblies, structural sections, stair construction details, acoustic insulation systems, ramps, HVAC duct fabrication details, material specifications, connection details, and technical references to support professional architectural and engineering workflows. Perfect for: • Architects • Civil Engineers • Structural Engineers • MEP Engineers • HVAC Designers • Interior Designers • Construction Professionals • Architecture Students Ideal for construction documentation, fabrication planning, technical detailing, shop drawings, residential projects, commercial developments, and educational use. Instant digital download after purchase.

$19.99CAD · digital download

Secure checkout with Stripe. No account required.

Digital filesSecure deliveryView licence

What’s included

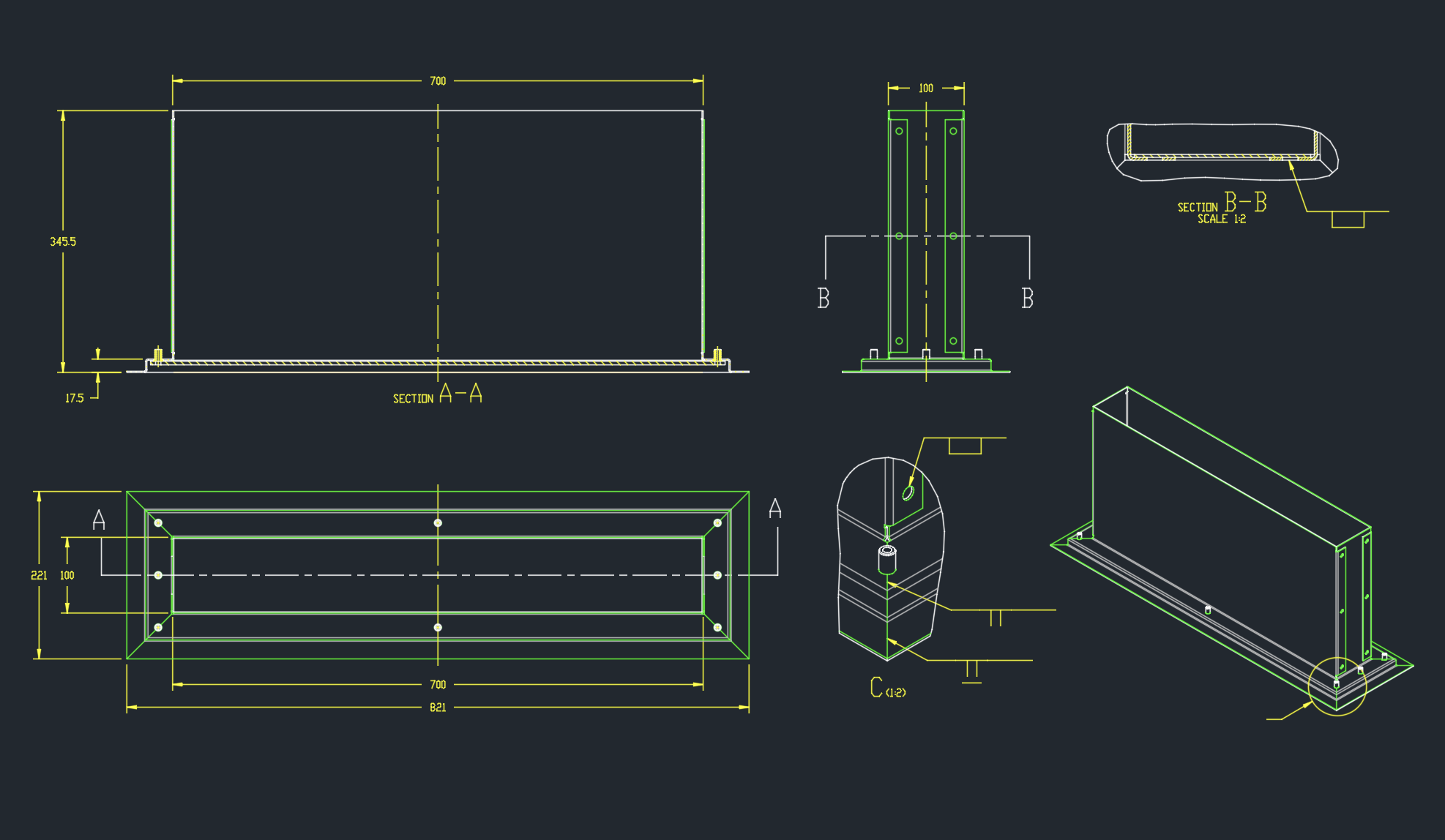

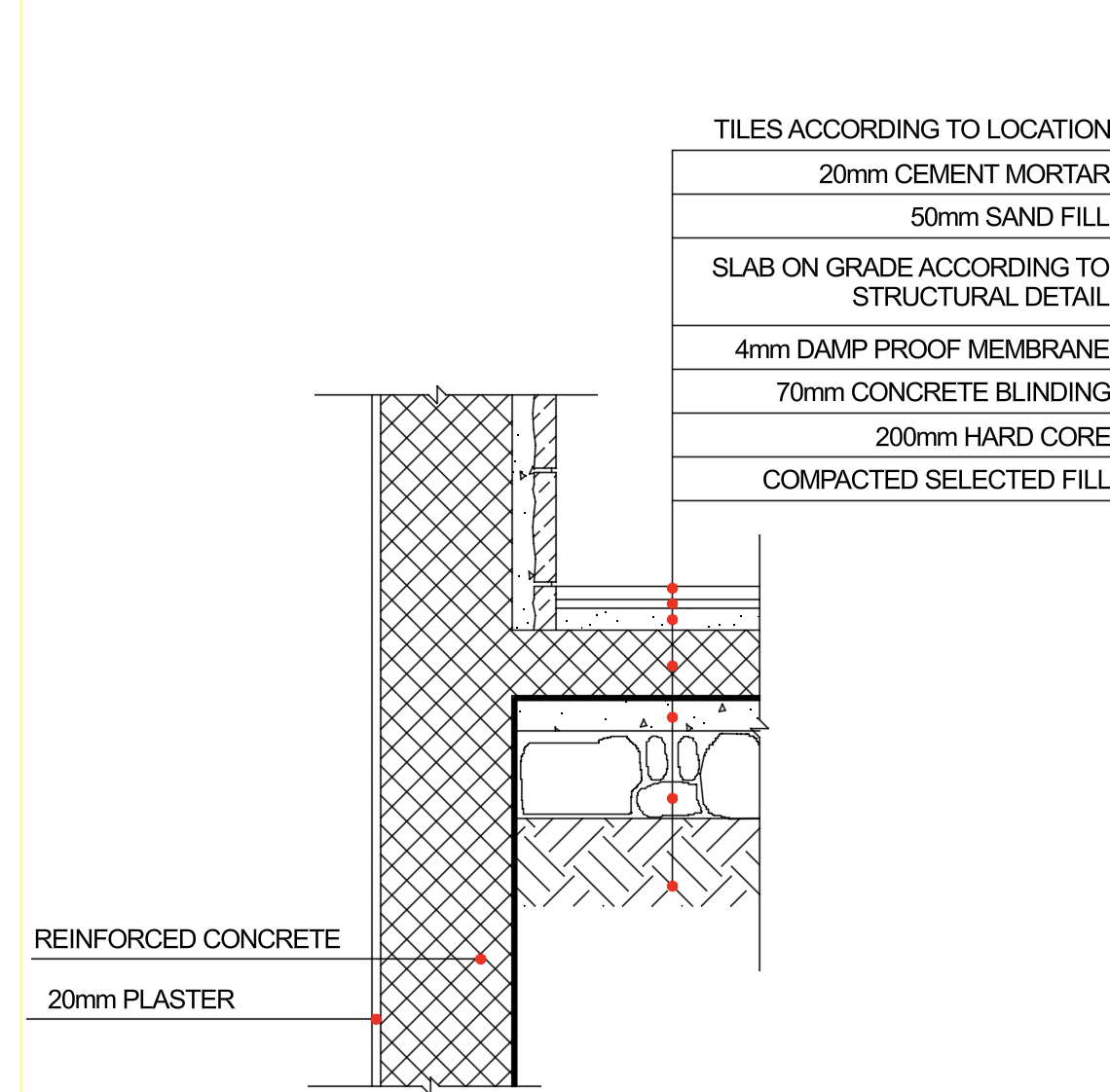

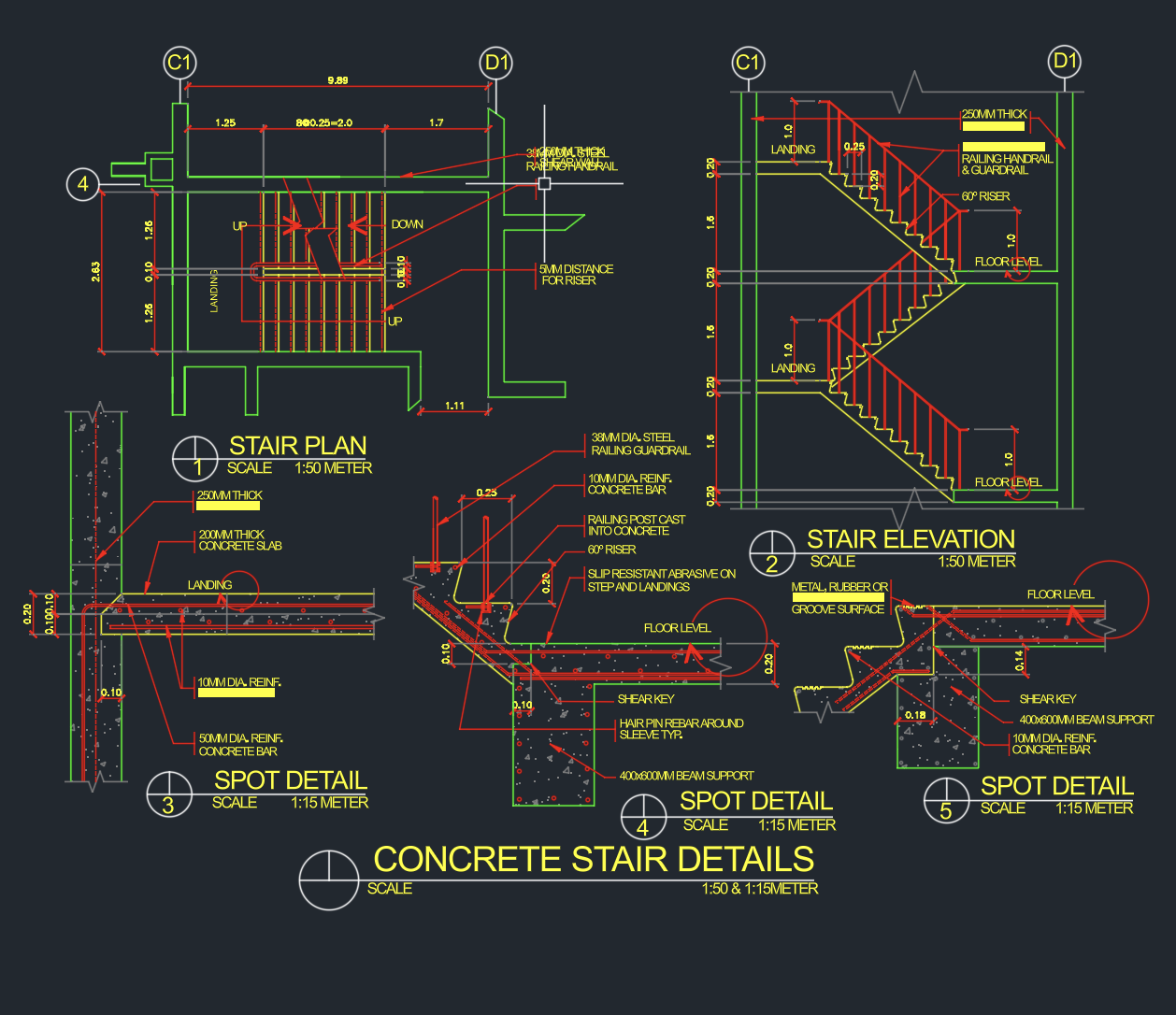

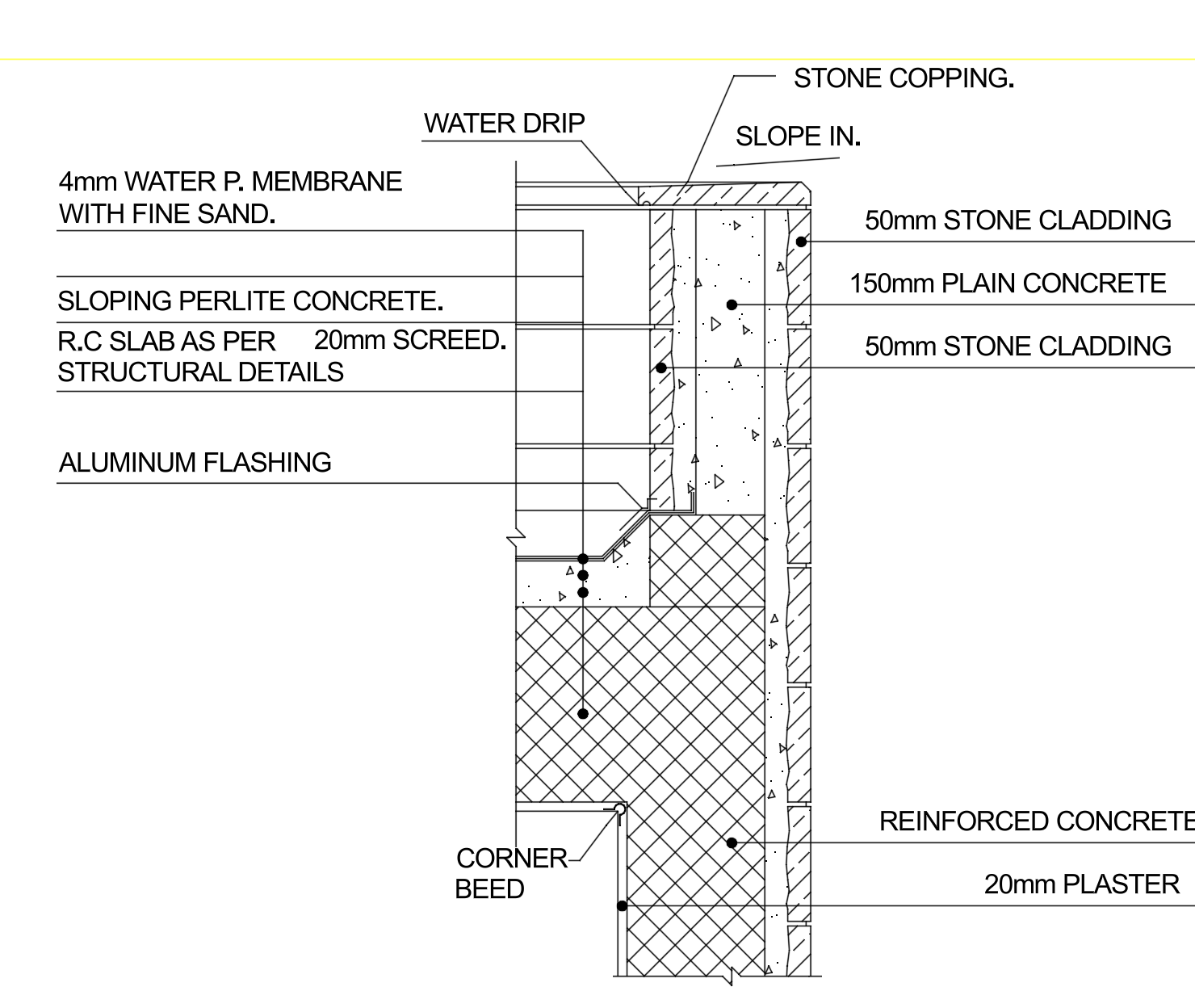

• Wall Section Details • Wall Section with RCC Column • Stone Wall Section • Acoustic Wall & Ceiling Insulation Details • Steel & Concrete Stair Details • Ramp Plans & Section Details • 700×100 Duct Cover & Cap Fabrication Detail

Software required

AutoCAD

What you can change

Refer to the overview for the editable elements. Preview images show the supplied design; additional customization may require the original software.

How to use it

1. Download your files and unzip the package if needed. 2. Read any included instructions and check the software requirements. 3. Open the files in compatible software and save a working copy before editing.
